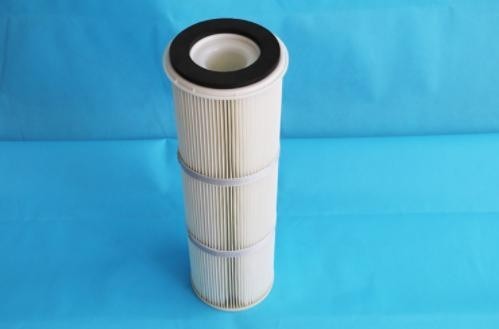

Toray Polyester filter cartridge
  • Toray Polyester filter cartridge
Toray Polyester filter cartridge

Toray Polyester filter cartridge

Détails de produit
Surligner:

polyester filter bag

,

replacement dust collector bags

Description du produit
Product Detail
Share to

Toray Polyester filter cartridge

Inquire Add to Inquiry list
  • Product Description
Description
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) High-wearing feature can improve the airflow.
3) It can extend the service life.
4) Excellent chemical resistance.
5) Good filter material stiffness,can be repeated washed.
6)Special seal elastic neoprene.
7)Operating temperature135C.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature135C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Material PP,Fiberglass ,Nanofiber ,Synthetic fiber , composite fiber , cellulose fiber ,H&V Filter paper etc.
Structure Cone/Cylinder Filter Cartridge
Dimension (OD)324*(ID)213*(H)660mm
(OD)352*(ID)241*(H)660mm
Sizes are according to your requirements.
Top/Bottom Galvanized Steel with double powder coating /Galvanized steel Stainless steel /Powder coated / ABS / PU etc.
End Caps Galvanized sheet
Inner Core
/ Outer Line		 Galvanized steel with hot melt glue / Stainless Steel / Color-coated steel etc.
Gasket 100% reinforced RTV Silicon Rubber, EVA, Fluorubber ect.
Bottom Open/Closed with bolt hole
Finishing Treatment PTFE membrane, PTFE-coating, waterproofing, oilproofing, flame-retarding treatment, antistatic coating, etc.
Operating Temperature 0 to above 70 Degrees, High Temperature,
MOQ NO MOQ . But advice full container to save cost.
